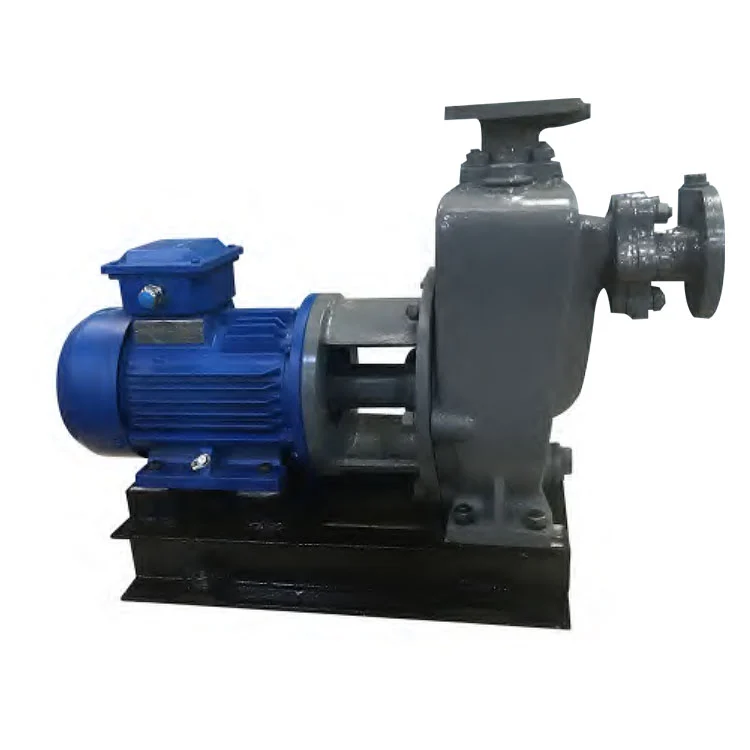

Op grote schaal toegepast in de lichte industrie, papier - maken, textiel, voedsel, chemicaliën, krachtindustrie, mijnbouw, boten, stedelijke rioolwaterafvoer en aquatische cultuur, de CWFZ type mariene zelfverzameling horizontale verpletterende pomp is momenteel de meest ideale pomp in China voor het transport van media met vaste deeltjes, vezels, stomp en gemengde suspensies.
Prestaties en parametertabel voor de voedingsfrequentie van 50Hz 3 φ 380V:
| Type | (50Hz 3 φ 380V) Hoofdtechnische parameter | Motorype Power KW | Gewicht Kg |
|||||
| Capaciteit M3/H |
Hoofd m |
Speed R/min | Npshr m |
Schachtvermogen kw |
||||
| 0,5cwfz-20 | 5 | 20 | 2900 | 4 | Y90L-2H | 2.2 | ||
| 0,5cwfz-25 | 5 | 25 | 2900 | 4 | Y90L-2H | 2.2 | ||
| 0,5cwfz-30 | 5 | 30 | 2900 | 4 | Y112M-2H | 4 | ||
| 1CWFZ-20 | 10 | 20 | 2900 | 4.5 | Y90L-2H | 2.2 | ||
| 1CWFZ-25 | 10 | 25 | 2900 | 4.5 | Y112M-2H | 4 | ||
| 1CWFZ-30 | 10 | 30 | 2900 | 4.5 | Y112M-2H | 4 | ||
| 1CWFZ-35 | 10 | 35 | 2900 | 4.5 | Y132S1-2H | 5.5 | ||
| 1CWFZ-40 | 10 | 40 | 2900 | 4.5 | Y132S1-2H | 5.5 | ||
| 1CWFZ-50 | 10 | 50 | 2900 | 4.5 | Y132S2-2H | 7.5 | ||
| 1.5CWFZ-30 | 15 | 30 | 2900 | 5 | Y132S1-2H | 5.5 | ||
| 1.5CWFZ-35 | 15 | 35 | 2900 | 5 | Y132S1-2H | 5.5 | ||
| 2CWFZ-35 | 20 | 35 | 2900 | 5 | Y132S2-2H | 7.5 | ||
| 2CWFZ-40 | 20 | 40 | 2900 | 5 | Y132S2-2H | 7.5 | ||
| 5CWFZ-30 | 50 | 30 | 2950 | 4.5 | Y160M1-2H | 11 | ||
| 5CWFZ-40 | 50 | 40 | 2950 | 4.5 | Y180M-2H | 22 | ||
Prestaties en parametertabel voor de voedingsfrequentie van 60Hz 3 φ 440V:
| Type | (60Hz 3 φ 440V) | Kw | Kg | |||||
| M3/H | Hoofd m |
r/min | m | kw | ||||
| 0,5CWFZ1-20 | 6 | 28 | 3500 | 4.5 | Y112M-2H | 4 | ||
| 0,5cwfz1-25 | 6 | 36 | 3500 | 4.5 | Y112M-2H | 4 | ||
| 0,5CWFZ1-30 | 6 | 43 | 3500 | 4.5 | Y112M-2H | 4 | ||
| 1CWFZ1-20 | 12 | 28.5 | 3500 | 5 | Y132S1-2H | 5.5 | ||
| 1CWFZ1-25 | 12 | 35.5 | 3500 | 5 | Y132S2-2H | 7.5 | ||
| 1CWFZ1-30 | 12 | 43 | 3500 | 5 | Y132S2-2H | 7.5 | ||
| 1CWFZ1-35 | 12 | 51 | 3550 | 5 | Y160M1-2H | 11 | ||
| 1CWFZ1-40 | 12 | 59 | 3550 | 5 | Y160M1-2H | 11 | ||
| 1CWFZ1-50 | 12 | 73 | 3550 | 5 | Y160M2-2H | 15 | ||
| 1.5CWFZ1-30 | 18 | 44 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 1.5CWFZ1-35 | 18 | 51 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 2CWFZ1-35 | 24.5 | 51 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 2CWFZ1-40 | 24.5 | 58 | 3550 | 5.5 | Y160M2-2H | 15 | ||
| 5CWFZ1-30 | 60 | 42 | 3550 | 5 | Y160L-2H | 18.5 | ||
| 5CWFZ1-40 | 60 | 57 | 3580 | 6 | Y200L2-2H | 37 | ||
